J Range Screw Jacks
5kN - 1000kN Lifting Capacity

Our J Range Screw Jacks are perfect for heavier industrial applications as they can be designed to almost any specification.

Lifting loads of up to 1000kN (and beyond) can be accommodated, along with customisable travel speeds and torque requirements to meet your objectives. We can even help you devise custom solutions that enable them to run as a single synchronised system.

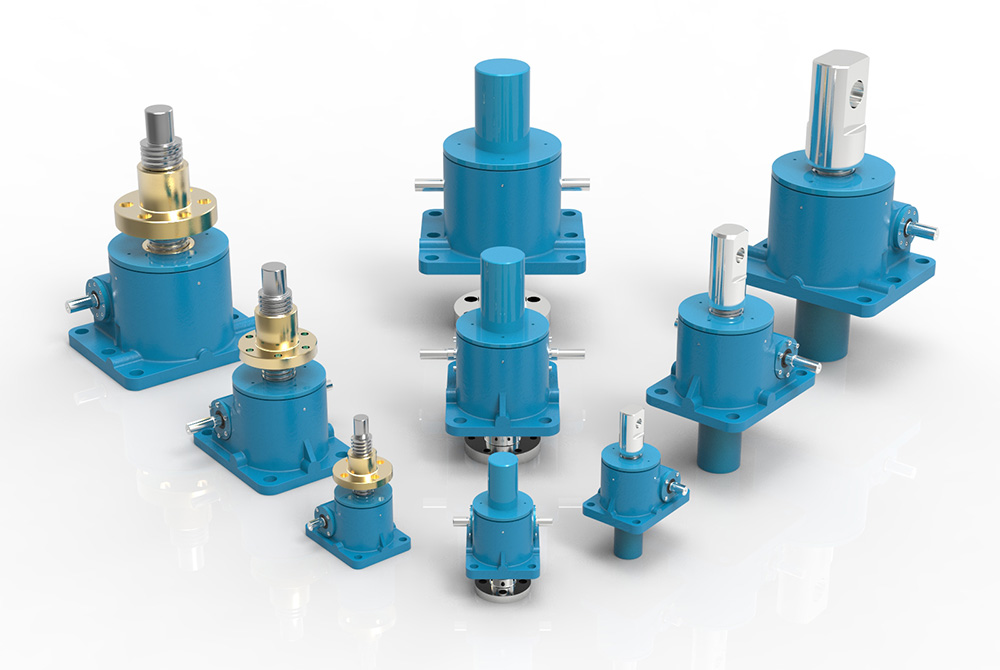

Standard J Range Screw Jacks

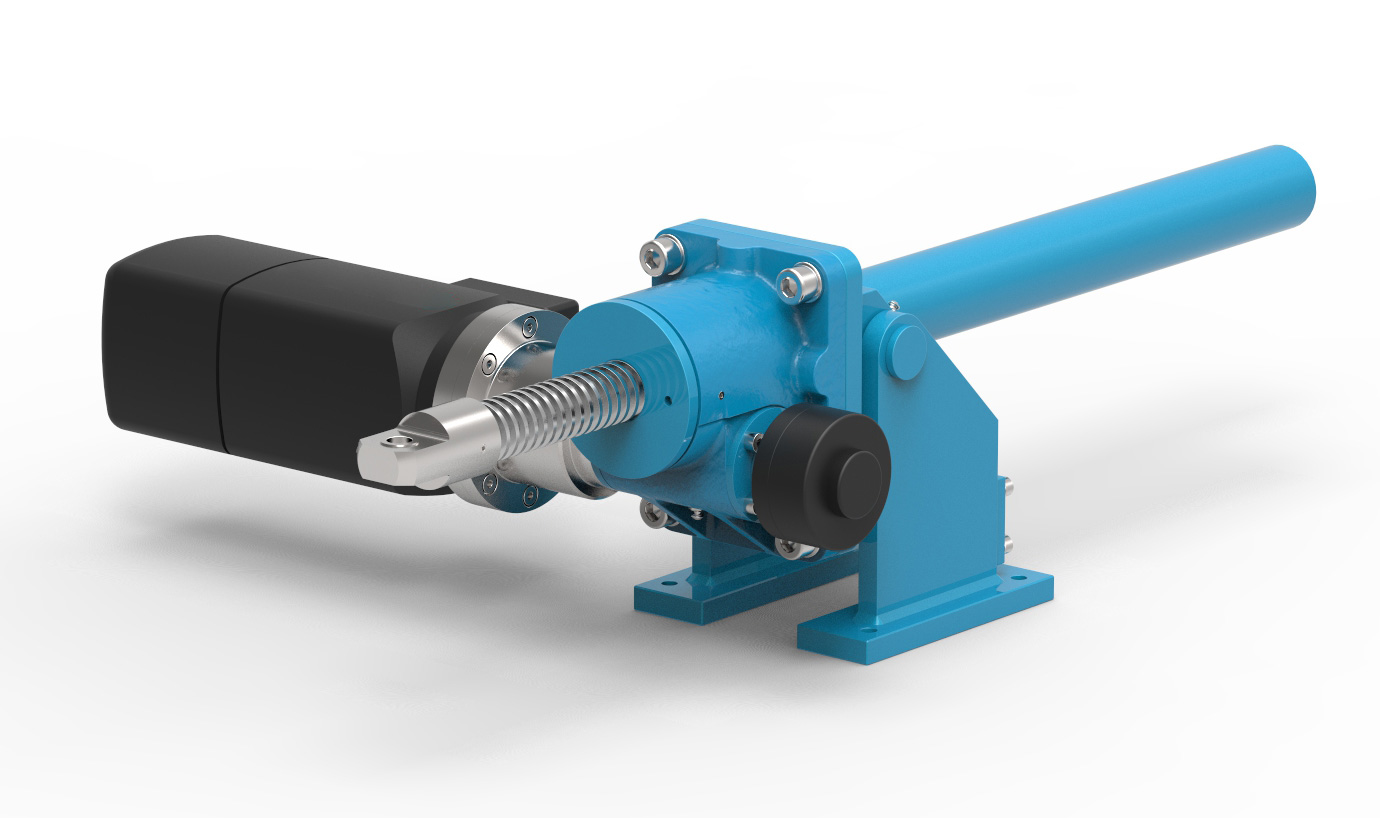

Horizontal J Screw Jack

Complete Customisation

These classic Screw Jacks typically feature a precision worm gear set with a powerful, steel lead screw. They can be configured for either a translating or rotating linear motion, with either an upright or inverted lifting orientation.

We can build the housing from any metal that will do the job – whether that is durable cast iron or non-corrosive materials like stainless steel – and utilise either machine screws or ball screws for more dynamic lifting requirements.

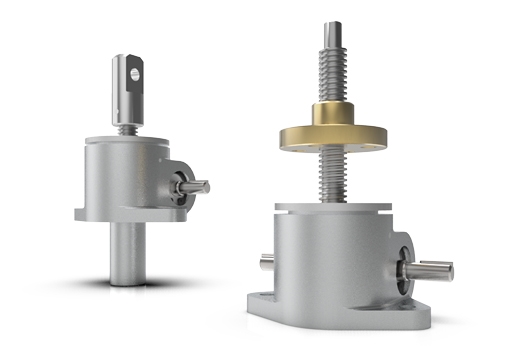

J00 (5kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr16 single of double start thread
  • Gear Ratio: Hi ratio 20:1 - Lo ratio 5:1
  • Gear Centres: 24mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

J01 (10kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr20 single of double start thread
  • Gear Ratio: Hi ratio 20:1 - Lo ratio 5:1
  • Gear Centres: 32mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

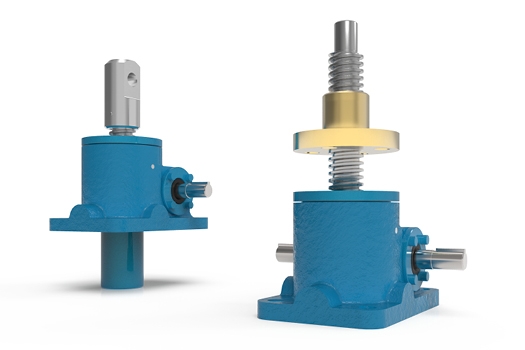

J02 (25kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr30 single of double start thread
  • Gear Ratio: Hi ratio 24:1 - Lo ratio 6:1
  • Gear Centres: 43.25mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

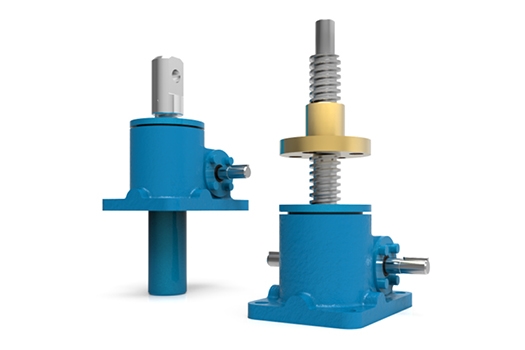

J03 (50kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr40 single of double start thread
  • Gear Ratio: Hi ratio 24:1 - Lo ratio 6:1
  • Gear Centres: 55.6mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

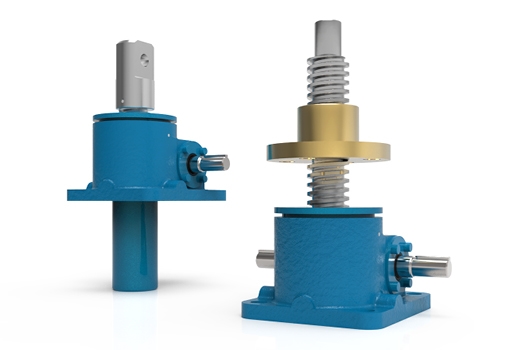

J04 (100kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr55 single of double start thread
  • Gear Ratio: Hi ratio 24:1 - Lo ratio 8:1
  • Gear Centres: 66mm
  • Travel speed and torque requirements see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

J051 (100kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr65 single of double start thread
  • Gear Ratio: Hi ratio 24:1 - Lo ratio 6:1
  • Gear Centres: 66mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

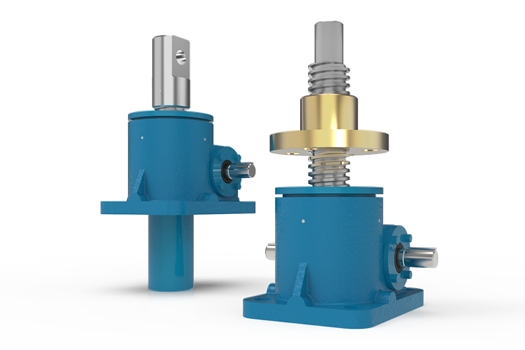

J05 (200kN Nominal Capacity) Screw Jack

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr65 single of double start thread
  • Gear Ratio: Hi ratio 24:1 - Lo ratio 6:1
  • Gear Centres: 80mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

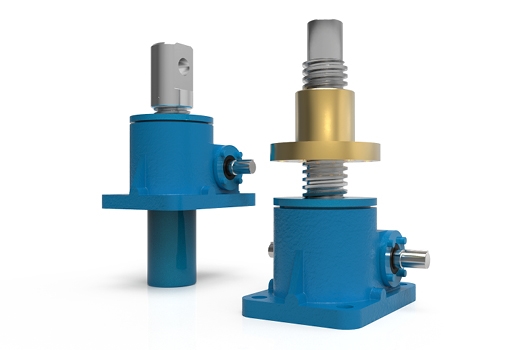

J06 (300kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr95 single of double start thread
  • Gear Ratio: Hi ratio 32:1 - Lo ratio 10.66:1
  • Gear Centres: 95.3mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

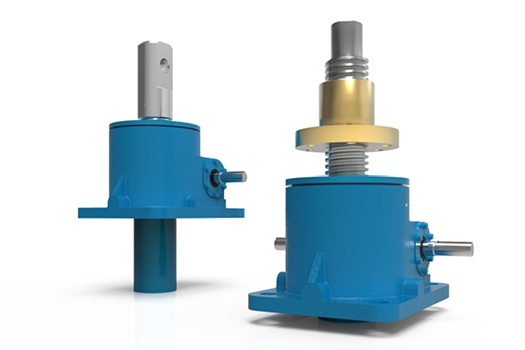

J07 (500kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr110 single of double start thread
  • Gear Ratio: Hi ratio 32:1 - Lo ratio 10.66:1
  • Gear Centres: 135mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

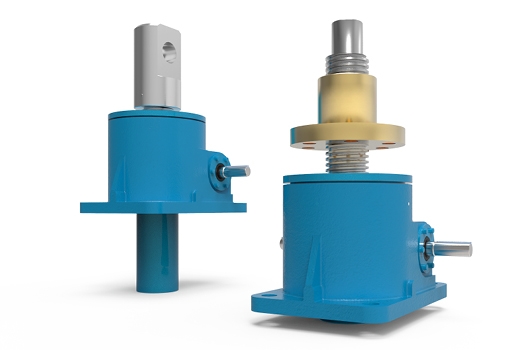

J08 (750kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr125 single of double start thread
  • Gear Ratio: Hi ratio 32:1 - Lo ratio 10.66:1
  • Gear Centres: 160mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

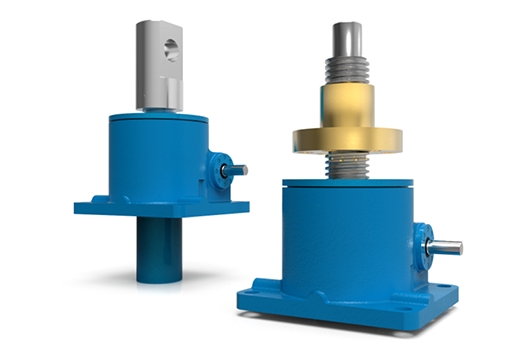

J09 (1000kN Nominal Capacity) Screw Jacks

  • Jack Types: Translating (TS), Rotating (RS)
  • Lifting Orientation: Upright or Inverted
  • Lifting Screw: Tr150 single of double start thread
  • Gear Ratio: Hi ratio 36:1 - Lo ratio 12:1
  • Gear Centres: 190mm
  • Travel speed and torque requirement see data sheet

View Products for quick access to Screw Jack CAD models and Data Sheets for pick and place into your assembly. The range of screw jacks is infinite, please contact us if you require a specific travel and we will create an exact model for your project.

View Products

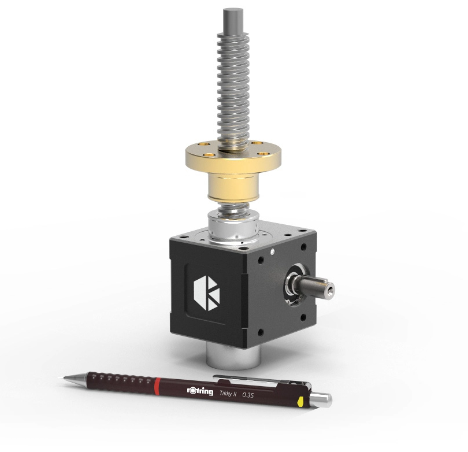

Request A Free Mini Cubic Prototype

The Mini Cubic Screw Jack is our most popular screw jack model in the range. While it measures just 50x60x50mm, it is intelligently-designed to lift load sizes of up to 2.5kN!

To get a feel for the design and build quality of Kelston Actuation products, request a free prototype model of the Mini Cubic Screw Jack today.

Request Prototype of the Mini Cubic
