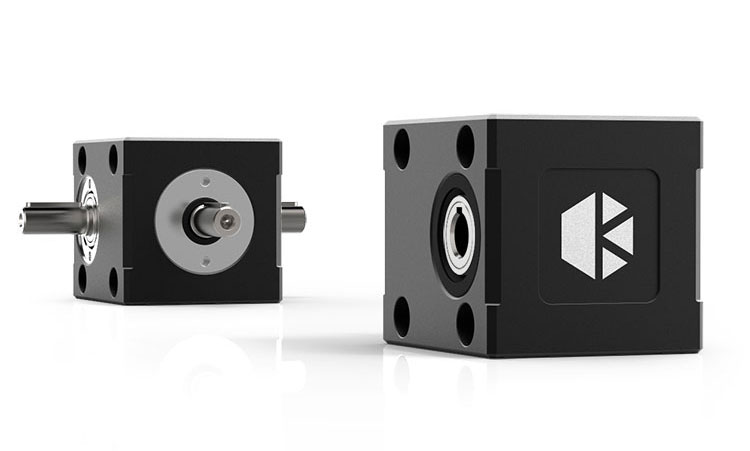

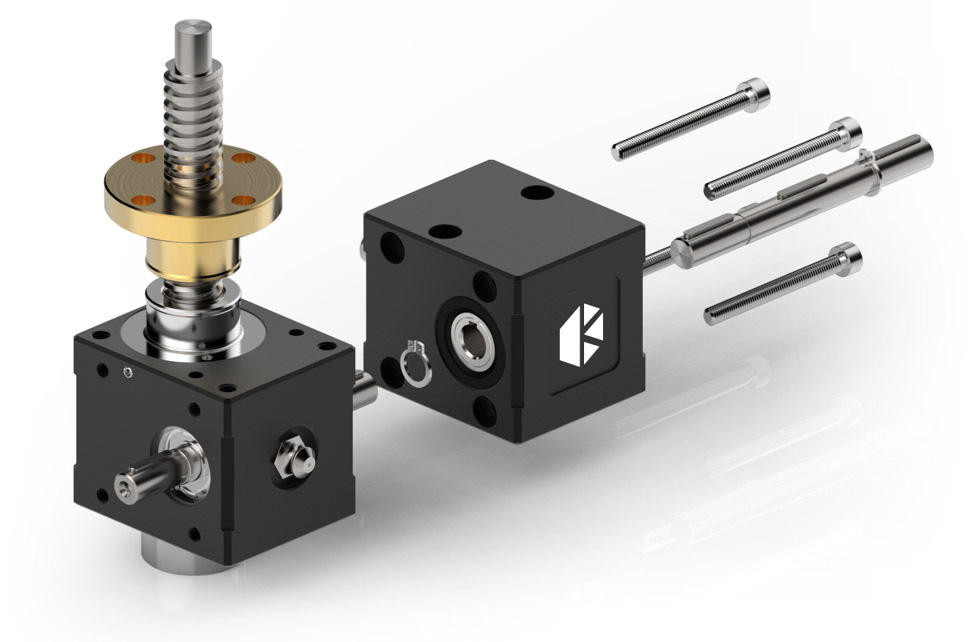

Our GM bevel gearboxes are designed to attach directly to their corresponding cubic screw jack – removing the need for a coupling between shafts. They can be utilised as a single jack and gearbox unit or as a component within a larger modular system.
Made from a precision machined 6082T6 aluminium body, this model of bevel gearbox features straight cut gears, branded bearings, seals and components made to exacting standards - ensuring reliability, durability, and smooth transmission.
The hollow shaft design of the GM bevel gearbox is popular because it allows for flexibility of connection. Customers can integrate their own drive shafts for use with custom motors - and use the threaded mounting holes and dowel location points on the gearbox for easy alignment and fixing.
With our free CAD configurator tool, design engineers can model a GM gearbox to fit their precise needs - choosing from four sizes and whether they want to create a single compact screw jack/gearbox system or to order gearboxes individually.

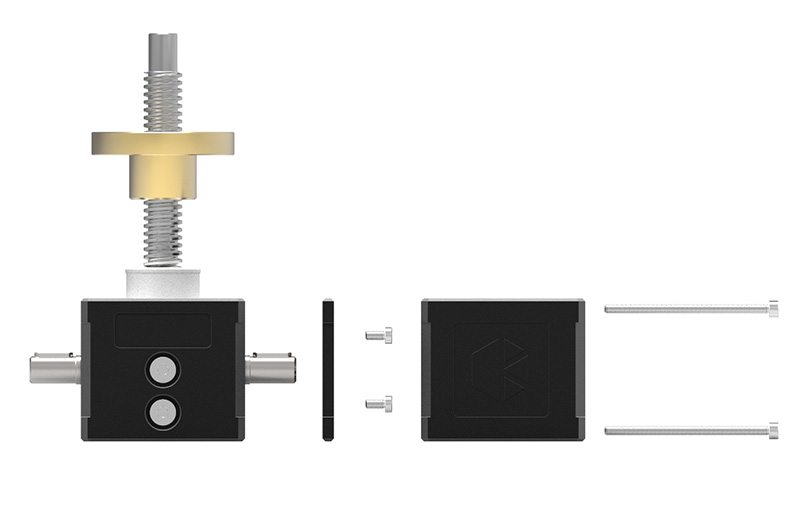

You can also choose to include an attachment plate (which includes all fixing bolts) and whether you need a solid output shaft for external fixing.
