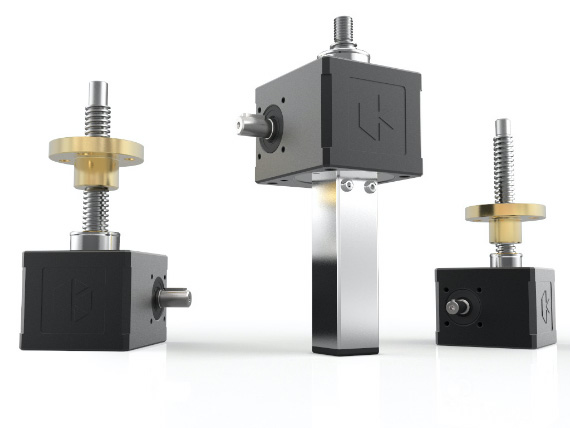

Cubic Screw Jacks
5kN – 50kN Lifting Capacity

Our flagship Cubic Screw Jack designs are available in a range of sizes and can run at speeds of up to 1400 rpm.

Made from anodised aluminium with stainless and high-grade steel fittings, they are commonly used for conveyor belt height adjustment or for raising/lowering platforms and components. They can be configured to be operated manually (hand wound) or powered by an external motor.

Cubic Screw Jacks
Configure Screw Jacks For Your Needs

Configure For Your Needs

Our Cubic Screw Jacks are manufactured with a trapezoidal lead screw design and can be configured to operate in either a translating, keyed translating or rotating fashion. Other customisable adjustments include the screw jack size (5kN to 50kN load capacity), travel rate (distance travelled by a single rotation of the input worm shaft) and length of travel. You can also upgrade the trapezoidal lead screw from high quality steel (080M40) to stainless steel if your environment demands it.

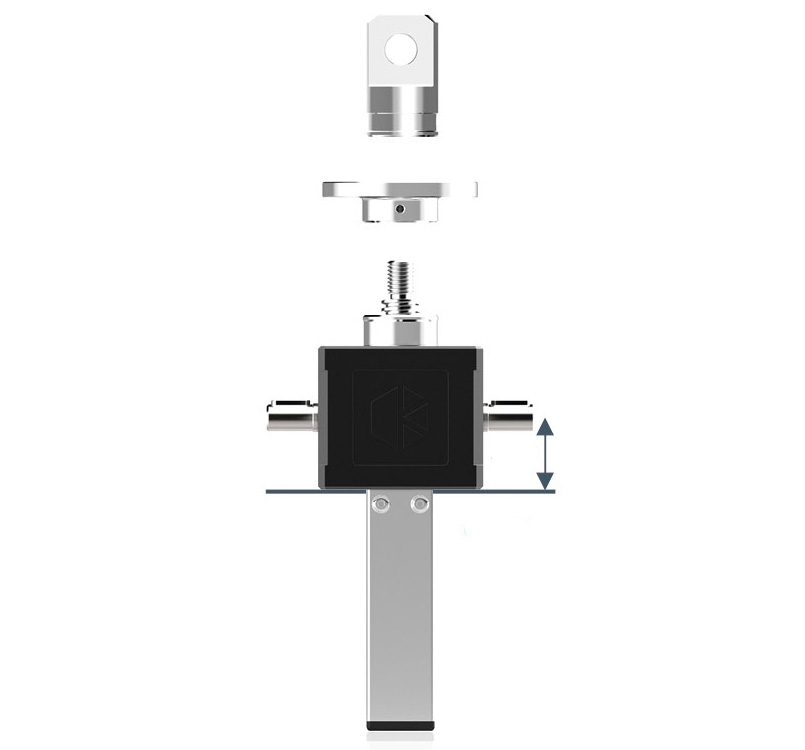

Choose from a selection of different clevis or flanged lead screw attachments or support with a mounting plates to ensure a level connection with other components.

Launch CAD Configurator

Build A Synchronised System

Our Cubic Screw Jacks are intelligently-engineered to work in modular system arrangements. Design engineers can piece together the number of components needed and create a layout that works for their requirement.

Connect a series of screw jacks together with custom drive shafts, couplings and bevel gearboxes. You have complete flexibility to build a system for your precise needs.

Launch System Builder

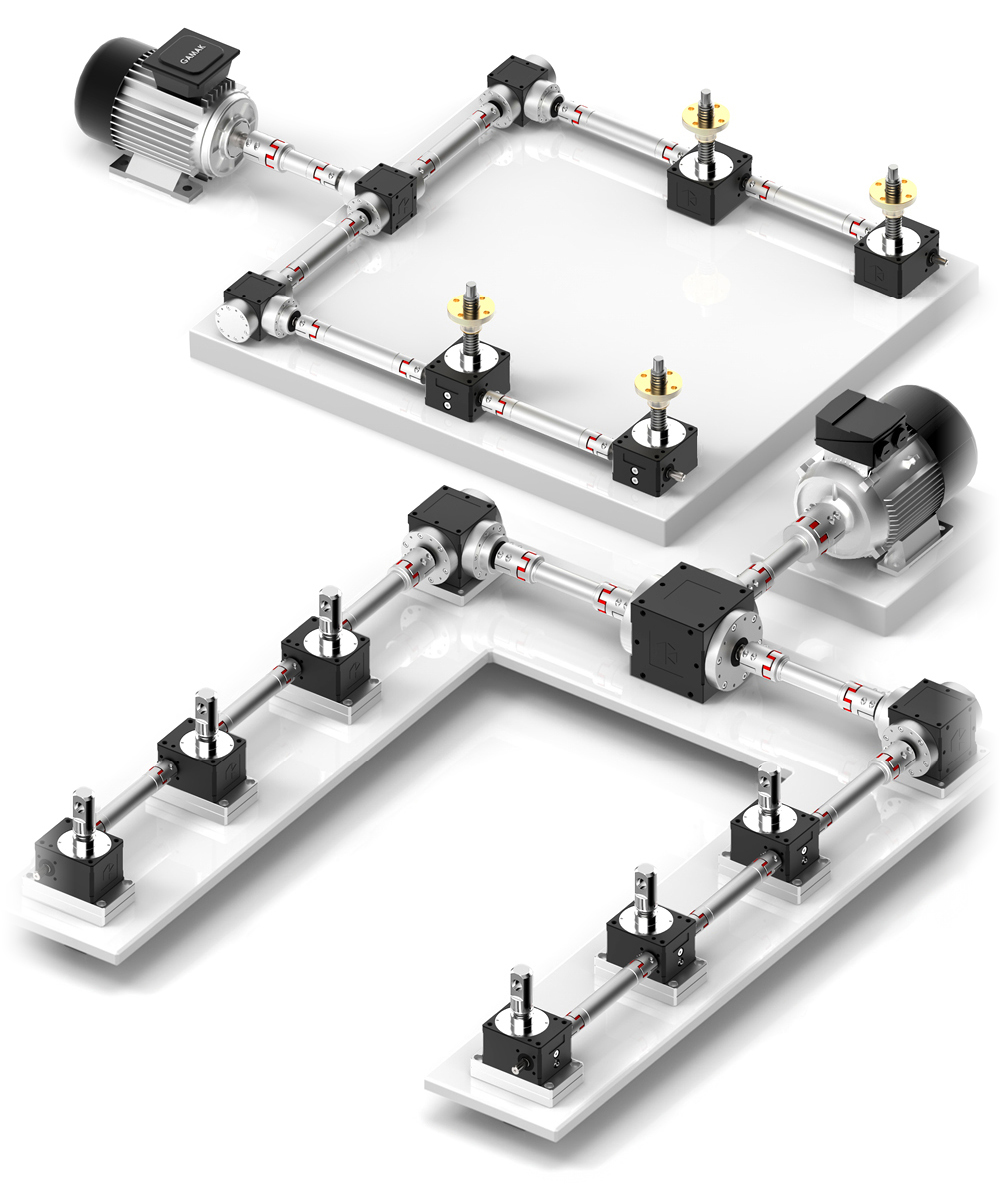

Cubic Screw Jack System

Screw Jack CAD Configurator

Select specifications for your desired screw jack and then download free CAD models to integrate into your designs.

Learn about CAD configuration

Screw Jack System Builder

Use the Kelston Screw Jack System Builder to determine suitable screw jacks and drive motor parameters tailored to your specific application

Go to system builder

Request A Free Mini Cubic Prototype

The Mini Cubic Screw Jack is our most popular screw jack model in the range. While it measures just 50x60x50mm, it is intelligently-designed to lift load sizes of up to 2.5kN!

To get a feel for the design and build quality of Kelston Actuation products, request a free prototype model of the Mini Cubic Screw Jack today.

Request Prototype of the Mini Cubic
Request a Free Mini Cubic Screw Jack
